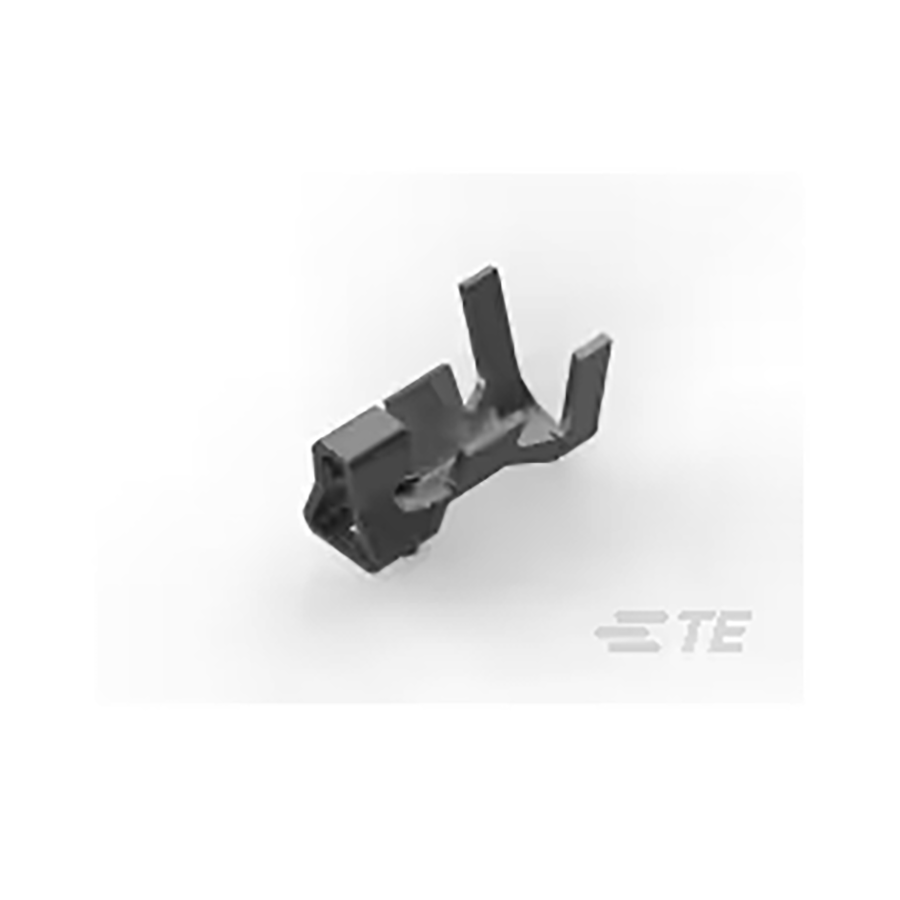

1376476-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1376476-1
Datasheet:
Description:
Headers and Wire Housings Cable Connector, PCB, Signal Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 4.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Material | Bronze |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 2.7 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.5 mm |
| Current Rating | 2.5 A |
| Max Current Rating | 2.5 A |
| Orientation | Straight |
| Operating Supply Voltage | 50 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Connector Type | Connector, PCB, Signal |
| Wire/Cable Gauge | 24 AWG to 22 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Resistance | 20 mΩ |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 24 AWG |
| Insulation Diameter | -1.9 mm |
| Contact Gender | Female |
| Mating Post Length | |
| Schedule B | 8536695050 |
| Sealable | No |
| Termination Post Length | |
| Termination Style | Crimp |
Stock: 4944
Distributors
pcbx
pcbxUnit Price$0.36900
Ext.Price$0.36900
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.36900 | $0.36900 |
| 10 | $0.18450 | $1.84500 |
| 50 | $0.14192 | $7.09600 |
| 100 | $0.10917 | $10.91700 |
| 500 | $0.08398 | $41.99000 |
| 1000 | $0.06460 | $64.60000 |
| 3000 | $0.04969 | $149.07000 |
| 5000 | $0.03822 | $191.10000 |
| 10000 | $0.03694 | $369.40000 |
